Name: MBTA_Rapid_Transit

Display Field: LINE_BRNCH

Type: Feature Layer

Geometry Type: esriGeometryPolyline

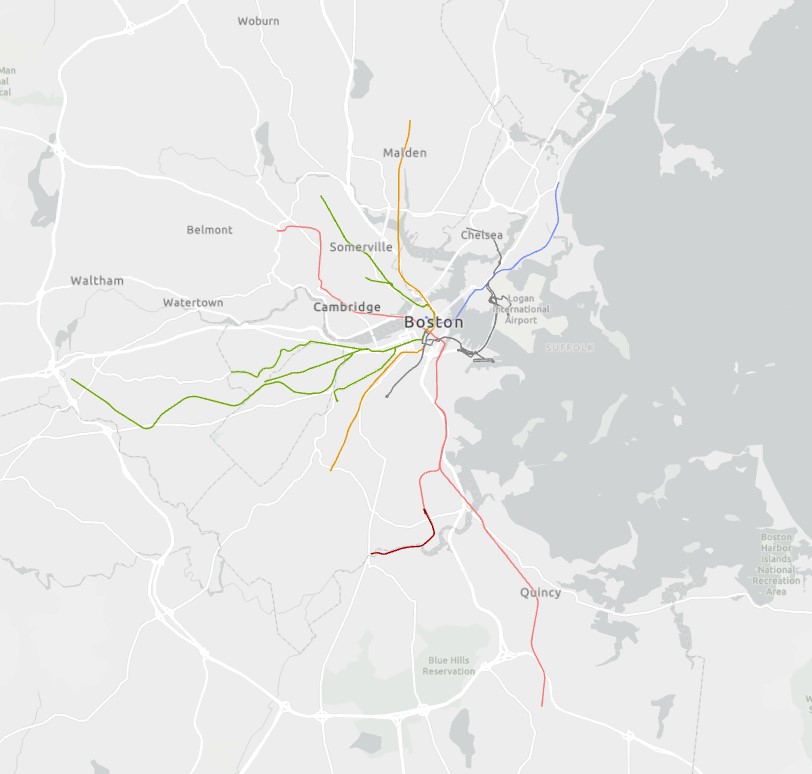

Description: This representation of the MBTA's rapid transportation network includes linework initially developed from MassDOT's rail inventory. Linework was extracted, and fields were refined to offer a clear representation. Additional Linework, specifically portions of the silver line were taken from MassGIS's rapid transit layer as well as MassDOT's road Inventory. Fields were refined to match the existing linework from the road inventory, and symbology was changed to match the respective lines' colors.

Copyright Text: Massachusetts Department of Transportation Data Team, MassGIS

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 220360.32639999688
YMin: 884142.9235000014
XMax: 241890.35819999874
YMax: 909991.9375
Spatial Reference: 26986  (26986)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: LINE_BRNCH
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: TRANSIT-BLUE
  Label: TRANSIT-BLUE
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [122, 142, 245, 255]
  Width: 1
• Value: TRANSIT-GREEN
  Label: TRANSIT-GREEN
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [112, 168, 0, 255]
  Width: 1
• Value: TRANSIT-ORANGE
  Label: TRANSIT-ORANGE
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [230, 152, 0, 255]
  Width: 1
• Value: TRANSIT-RED
  Label: TRANSIT-RED
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [245, 122, 122, 255]
  Width: 1
• Value: TRANSIT-RED-TROLLEY
  Label: TRANSIT-RED-TROLLEY
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [168, 0, 0, 255]
  Width: 1
• Value: TRANSIT-SILVER
  Label: TRANSIT-SILVER
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [130, 130, 130, 255]
  Width: 1
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: true

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• FNODE_ ( type: esriFieldTypeInteger, alias: FNODE_ )
• TNODE_ ( type: esriFieldTypeInteger, alias: TNODE_ )
• LINE_BRNCH ( type: esriFieldTypeString, alias: LINE_BRNCH, length: 20 )
• TRACK ( type: esriFieldTypeInteger, alias: TRACK )
• RT_LINE ( type: esriFieldTypeString, alias: RT_LINE, length: 20 )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape_Length )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
