Name: MBTA_Rapid_Transit

Display Field: LINE_BRNCH

Type: Feature Layer

Geometry Type: esriGeometryPolyline

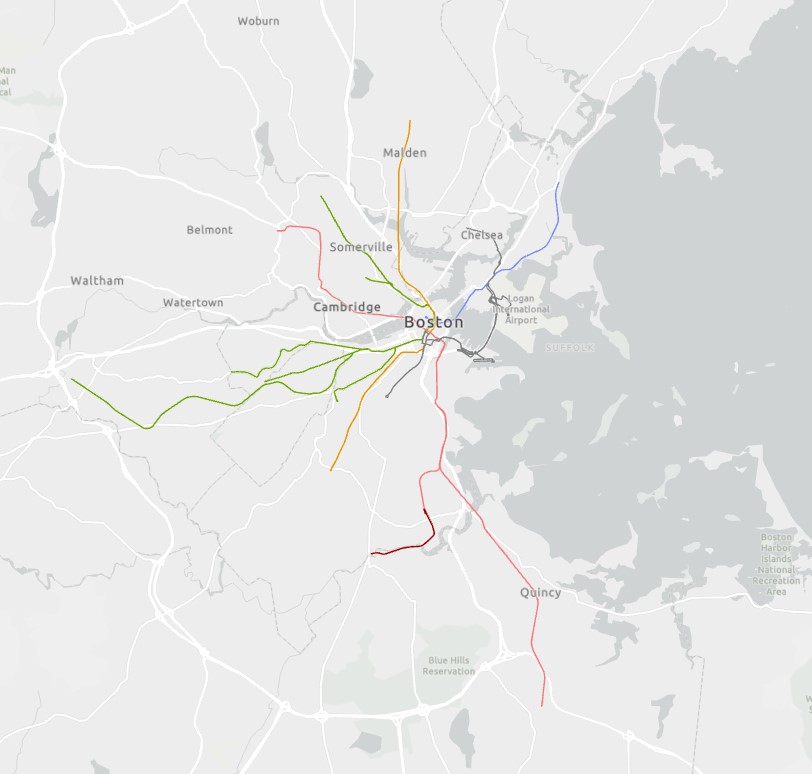

Description: This representation of the MBTA's rapid transportation network includes linework initially developed from MassDOT's rail inventory. Linework was extracted, and fields were refined to offer a clear representation. Additional Linework, specifically portions of the silver line were taken from MassGIS's rapid transit layer as well as MassDOT's road Inventory. Fields were refined to match the existing linework from the road inventory, and symbology was changed to match the respective lines' colors.

Copyright Text: Massachusetts Department of Transportation Data Team, MassGIS

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 220360.32639999688
YMin: 884142.9235000014
XMax: 241890.35819999874
YMax: 909991.9375
Spatial Reference: 26986  (26986)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: LINE_BRNCH
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: TRANSIT-BLUE
  Label: TRANSIT-BLUE
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [122, 142, 245, 255]
  Width: 1
• Value: TRANSIT-GREEN
  Label: TRANSIT-GREEN
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [112, 168, 0, 255]
  Width: 1
• Value: TRANSIT-ORANGE
  Label: TRANSIT-ORANGE
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [230, 152, 0, 255]
  Width: 1
• Value: TRANSIT-RED
  Label: TRANSIT-RED
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [245, 122, 122, 255]
  Width: 1
• Value: TRANSIT-RED-TROLLEY
  Label: TRANSIT-RED-TROLLEY
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [168, 0, 0, 255]
  Width: 1
• Value: TRANSIT-SILVER
  Label: TRANSIT-SILVER
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [130, 130, 130, 255]
  Width: 1
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: false
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: true

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: LINE_BRNCH

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, editable: false, nullable: false, length: 38, defaultValue: null, modelName: GlobalID )
• FNODE_ ( type: esriFieldTypeInteger, alias: FNODE_, editable: true, nullable: true, defaultValue: null, modelName: FNODE_ )
• TNODE_ ( type: esriFieldTypeInteger, alias: TNODE_, editable: true, nullable: true, defaultValue: null, modelName: TNODE_ )
• LINE_BRNCH ( type: esriFieldTypeString, alias: LINE_BRNCH, editable: true, nullable: true, length: 20, defaultValue: null, modelName: LINE_BRNCH )
• TRACK ( type: esriFieldTypeInteger, alias: TRACK, editable: true, nullable: true, defaultValue: null, modelName: TRACK )
• RT_LINE ( type: esriFieldTypeString, alias: RT_LINE, editable: true, nullable: true, length: 20, defaultValue: null, modelName: RT_LINE )
• Shape__Length ( type: esriFieldTypeDouble, alias: Shape_Length, editable: false, nullable: true, defaultValue: null, modelName: Shape.STLength(), required: true )

Types:

ID: TRANSIT-BLUE
Name: TRANSIT-BLUE
Domains:
Templates:
• Name: TRANSIT-BLUE
  Description:
  Prototype:
  TNODE_: null
  RT_LINE: null
  TRACK: null
  FNODE_: null
  LINE_BRNCH: TRANSIT-BLUE

  Drawing Tool: esriFeatureEditToolLine

---

ID: TRANSIT-GREEN
Name: TRANSIT-GREEN
Domains:
Templates:
• Name: TRANSIT-GREEN
  Description:
  Prototype:
  TNODE_: null
  RT_LINE: null
  TRACK: null
  FNODE_: null
  LINE_BRNCH: TRANSIT-GREEN

  Drawing Tool: esriFeatureEditToolLine

---

ID: TRANSIT-ORANGE
Name: TRANSIT-ORANGE
Domains:
Templates:
• Name: TRANSIT-ORANGE
  Description:
  Prototype:
  TNODE_: null
  RT_LINE: null
  TRACK: null
  FNODE_: null
  LINE_BRNCH: TRANSIT-ORANGE

  Drawing Tool: esriFeatureEditToolLine

---

ID: TRANSIT-RED
Name: TRANSIT-RED
Domains:
Templates:
• Name: TRANSIT-RED
  Description:
  Prototype:
  TNODE_: null
  RT_LINE: null
  TRACK: null
  FNODE_: null
  LINE_BRNCH: TRANSIT-RED

  Drawing Tool: esriFeatureEditToolLine

---

ID: TRANSIT-RED-TROLLEY
Name: TRANSIT-RED-TROLLEY
Domains:
Templates:
• Name: TRANSIT-RED-TROLLEY
  Description:
  Prototype:
  TNODE_: null
  RT_LINE: null
  TRACK: null
  FNODE_: null
  LINE_BRNCH: TRANSIT-RED-TROLLEY

  Drawing Tool: esriFeatureEditToolLine

---

ID: TRANSIT-SILVER
Name: TRANSIT-SILVER
Domains:
Templates:
• Name: TRANSIT-SILVER
  Description:
  Prototype:
  TNODE_: null
  RT_LINE: null
  TRACK: null
  FNODE_: null
  LINE_BRNCH: TRANSIT-SILVER

  Drawing Tool: esriFeatureEditToolLine

---

Capabilities: Query,Extract

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: true

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Child Resources:   Field Groups   Contingent Values

Supported Operations:   Query   Query Analytic   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata   Update Metadata
